Cross Check™ Plus
details

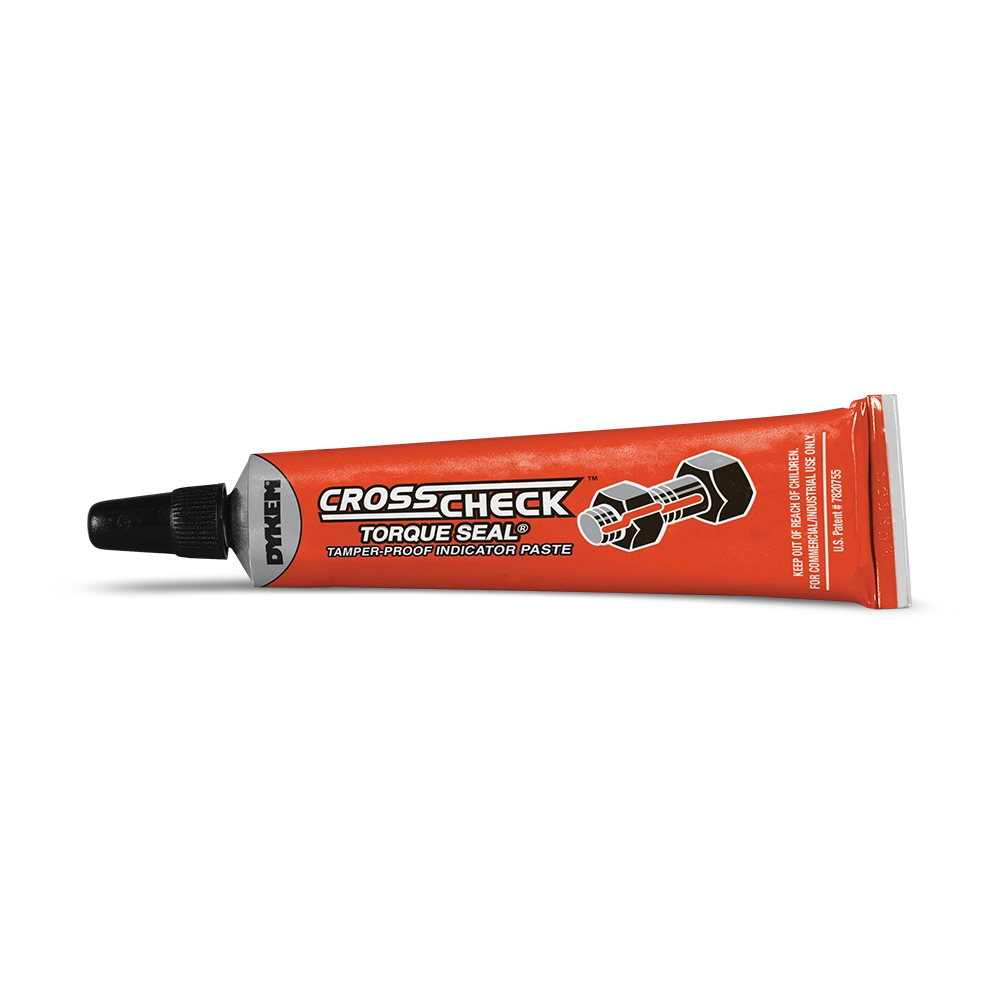

Cross Check™ Torque Seal® Tamper-Proof Indicator Paste
-
Non-Aerosol SDS
-
Marker SDS

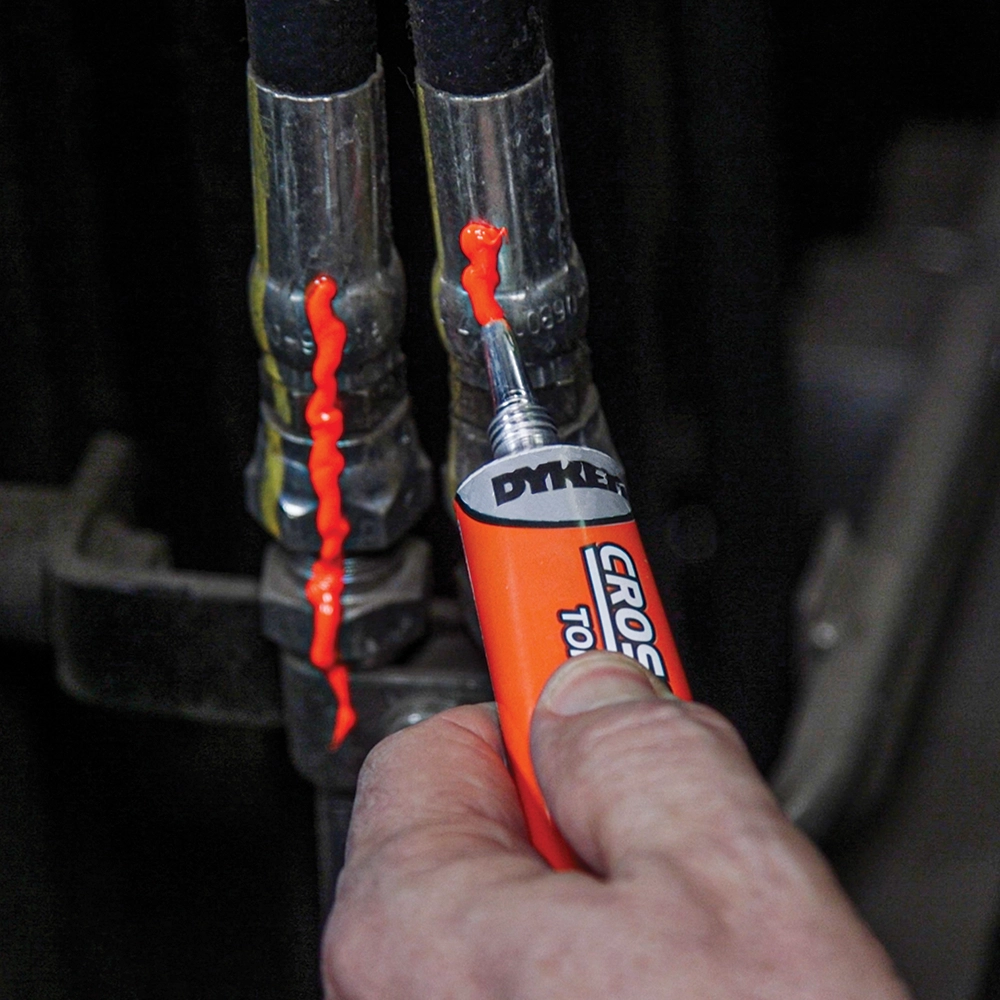

DYKEM® Cross Check™ Torque Seal® Tamper-Proof Indicator Paste provides a convenient visual method for identification of vibratory loosening or tampering in nuts, bolts, fasteners, and assemblies. Provides warranty protection against tampering. Marks will be easily broken if parts are tampered with or become loose. Highly visible under ambient light and fluorescent under UV light. Excellent adhesion to metal and other substrates.
FEATURES
- Tamper Proof Torque Mark
- Safe for most surfaces

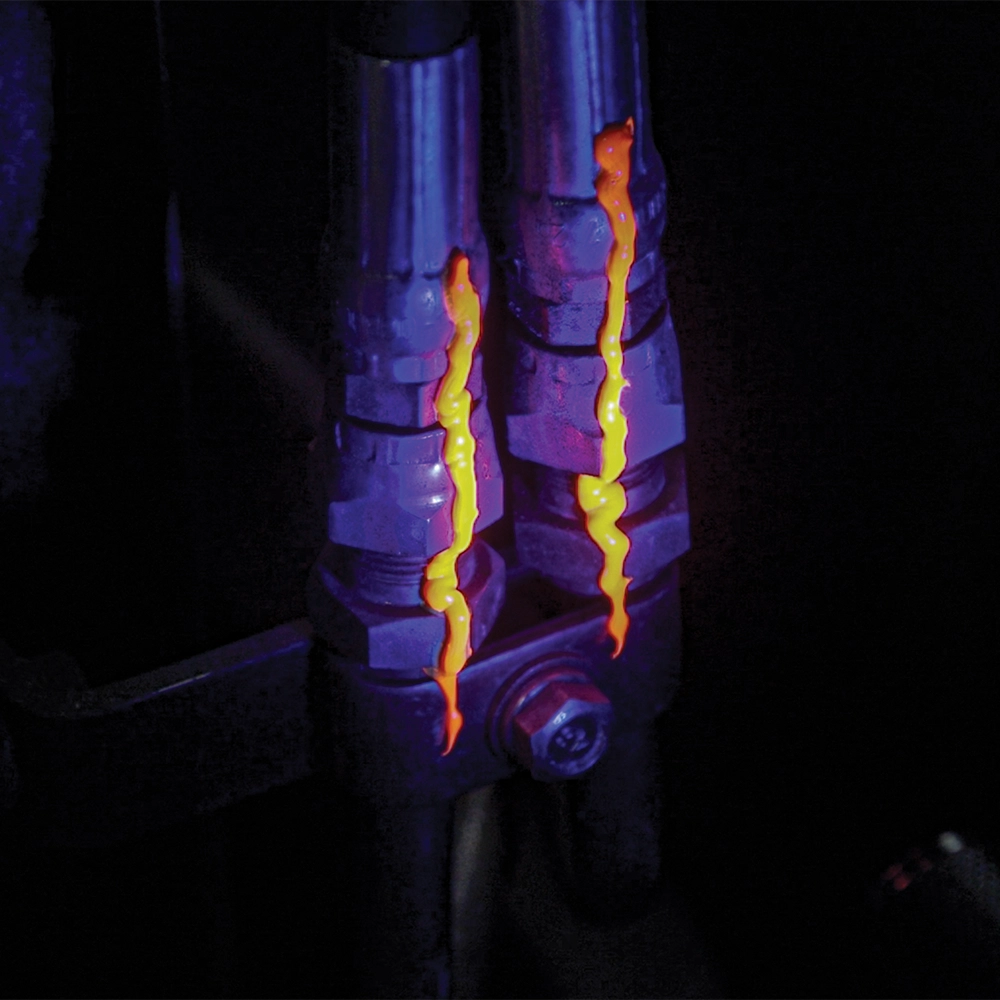

- Highly visible- blue, yellow, red, green, and orange colors are fluorescent under blacklight
- Excellent adhesion
- Visually detects loose nuts & bolts
- Provides warranty protection
- Meets BOEING Specification, BMS8-45 Type II
APPLICATIONS
|
SPECIFICATIONS
- Approved product replacement for Organic Products Company F-900 Torque Seal
- Boeing Specification: BMS8-45 REV H Type II
- NORTHROP GRUMMAN GC115UG rev K - Colors: Orange, Red, Yellow, Blue, White, Pink
- Lockheed Martin 302-40812
- CPW487 Rev. B
Packaging Details
| Part No. US | Part No. Canada | Color | Net Contents | Container Type | Units/Case | Shelf Life |
|---|---|---|---|---|---|---|
| 83314 | C83314 | orange | 1 oz | tube | 24 | 3 years |
| 83315 | green | 1 oz | tube | 24 | 3 years | |
| 83316 | C83316 | red | 1 oz | tube | 24 | 3 years |
| 83317 | C83317 | yellow | 1 oz | tube | 24 | 3 years |
| 83318 | C83318 | blue | 1 oz | tube | 24 | 3 years |
| 83319 | C83319 | white | 1 oz | tube | 24 | 3 years |
| 83320 | C83320 | pink | 1 oz | tube | 24 | 3 years |
| 83321 | gray | 1 oz | tube | 24 | 3 years |
Search for discontinued products in the SDS Finder
Properties
| Appearance / Physical State | Liquid |
| Odor | mild |
| Flash Point | 105.1 °F (40.6 °C) |
| Boiling Point / Range | 276.98 - 485.06 °F (136.1 - 251.7 °C |
| VOC Content | 42.28%, 430 g/L |
| Vapor Density | > 1 (air = 1) |
| Prop 65 Warning | YES |
